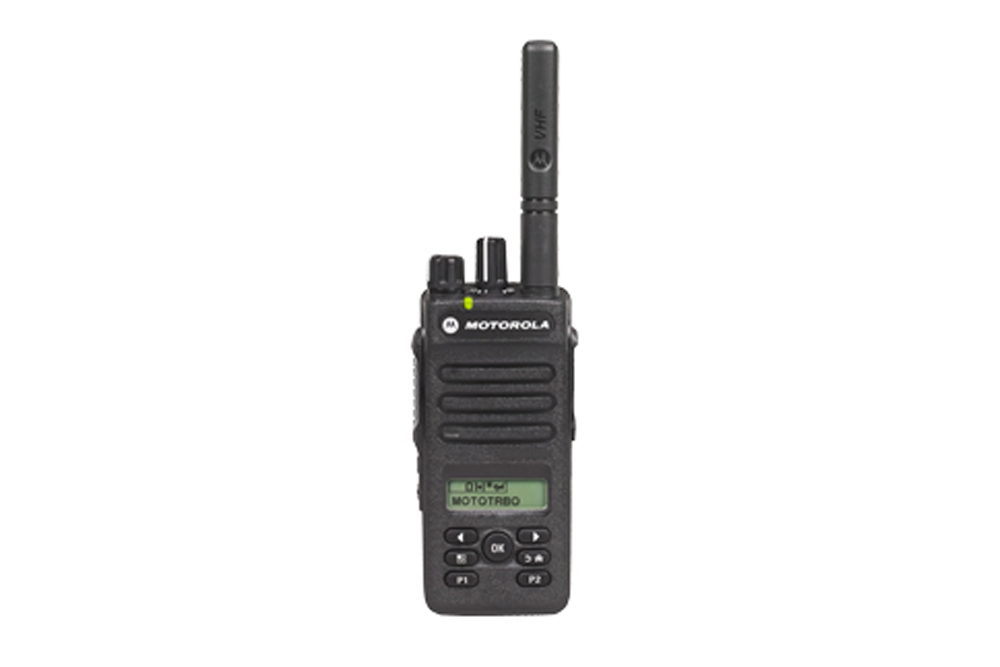

MOTOTRBO™ DP2000e Portable Two-Way Radio Series

MOTOTRBO DP2000e Digital Portable Two-Way Radio Series
You’re better connected, safer and efficient.

MOTOTRBO DP2000e Portable

With this dynamic evolution of MOTOTRBO™ digital two-way radios, you’re better connected, safer and more efficient. The DP2000e Series is designed for the everyday worker who needs effective communications. With systems support and loud, clear audio, these next-generation radios deliver cost-effective connectivity to your organisation.

Here’s what’s new in these next-generation radios:

  • Over-the-air programming
  • Enhanced audio quality
  • Improved expandability
  • Better battery life (up to 28 hours)
  • Better range (up to 8%)
  • Better waterproofing (IP67)
  • TIA4950 certified HazLoc models available

The DP2000e Series Includes:

DP2400e
DP2600e

Features

Connected
The DP2000e Series is a family of ETSI DMR Standards compliant digital radios that deliver operation-critical voice communications. With a single button push, workers can communicate for greater efficiency and enhanced safety. With support for trunking, as well as legacy analogue technology, you can keep your organisation connected as it grows.

Efficient
With new noise cancellation technology and improved clarity, the DP2000e Series delivers excellent audio quality to make your workplace communications clearly intelligible. The latest energy technology delivers up to 28 hours of battery life for 3-shift working, and the optional IMPRES Over-the-Air Battery Management tool helps you maximize battery lifetime. An improved receiver boosts the range by up to 8%, allowing you to reach further than ever.

Safe
The DP2000e Series is designed to enhance safety in your organisation, with the rapid response capability of instantaneous push-to-talk communications. Even if a worker is unresponsive, you can remotely activate the radio to check status, ensuring your worker is safe. Privacy options are available to prevent others from listening in on your communications, and radios can be remotely disabled if they are misplaced or stolen. New TIA4950 certified models are available for use in hazardous locations where flammable or explosive materials are present.

Performance Characteristics

Frequency Band
UHF, VHF, 300MHz

Power Output
UHF, 300Mhz: 1W/4W
VHF: 1W/5W

Battery Life (Based on 05 05 90 duty cycle)
Up to 28.5 hrs (digital) / 21 hrs (analogue)

Repeater Capable
Yes

Physical Characteristics

Dimensions H x W x D (with Standard Battery)
122 x 56 x 36 mm (4.8 x 2.2 x 1.4 in)

Weight (with 1400mAh LiIon battery)
DP2600e: 281 g (10 oz)
DP2400e: 264 g (9.3 oz)

Radio Features

Number of Channels
DP2600e: 128 channels
DP2400e: 16 channels

Channel Spacing
12.5, 20, 25

Technology

Digital Technology
Yes

System Type
Conventional, IP Site Connect, Capacity Plus, Capacity Max, Connect Plus Trunking

User Environment

Mil Spec
810 C, 810 D, 810 E, 810 F, 810 G

IP Standards
IP67

Warranty

Standard Warranty
2 Years
